Product Origin:Jiangsu, China
Main Material:fiber optic cable
Product Size:custom size
Application:Used in telecommunication networks, active or passive equipment terminals, Gigabit Ethernet, CATV, industrial, medical and military, etc.
Product Details
Fiber optic connector, also known as fiber optic patch cord, can connect the two ends of fiber optic precisely with very low insertion loss.
NJGIANT can provide different fiber optic cable and connectors for customization.
Including simplex, duplex, miniature-double cable.
And SC/FC/LC/ST/MU/MT-RJ/E2000 connector.

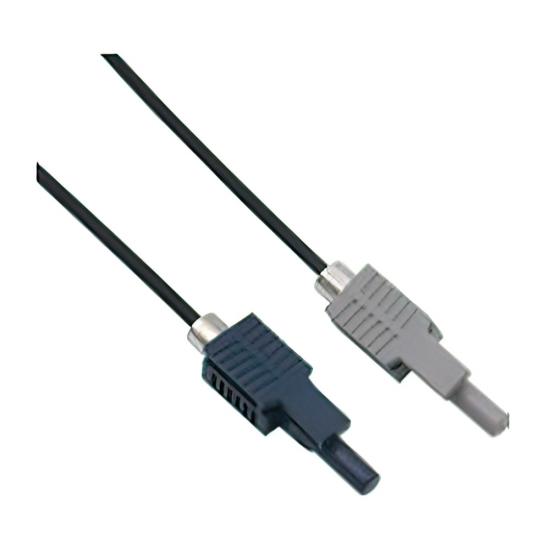

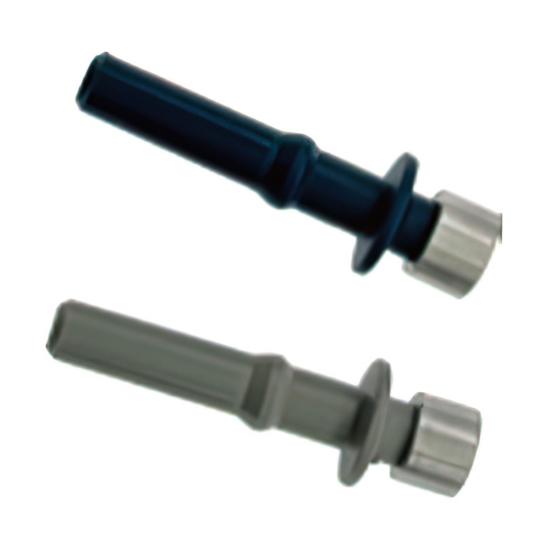

Product Pictures
|
SILICA OPTIC FIBER PATCH CORD PERFORMANCE |
|
Test Item |
FC/SC/ST/LC/MU |
MT-RJ |
|
Test Item |
Grade A (standard) |
Grade B (first-calss) |
MM |
SM |
|
Insertion Loss |
≤0.3 (type:0.15) |
≤0.2 (type:0.10) |
＜0.5 (repeatability) |
＜0.55 (repeatability) |
|
Return Loss |
PC≥40 APC≥50 |
PC≥45 APC≥55 |
＞25 |
＞35 |
|
ENVIRONMENTAL AND MECHANICAL PERFORMANCE FC/SC/ST/LC/MU |
|
Test Item |
Performance Condition |
Insertion Loss |
|
High Temperature |
+85℃, 168h |
0.2dB |
|
Temperature Cycle |
-40 ℃～+75℃, 21cycles, 168h |
0.2dB |
|
Humidity Aging |
75℃, 95%R.H. 168h |
0.2dB |
|
H/C Cycling |
-10℃~+65℃, 95%~100%R.H. 14 cycle, 168h |
0.2dB |
|
Vibration |
10 Hz～55Hz, 1.5mm(p-p) |
0.1dB |
|
Flex |
0.6～0.9kgf, -90°～+90°100 cycles |
0.1dB |
|
Twist |
1.5～2.5kgf, 10 times/min,±180°, 200times |
0.1dB |
|
Tension |
70～90N, 10min |
0.1dB |
|
Impact |
1.5m, 8 times |
0.2dB |
|
repeatability |
10 times |
0.2dB |
|
Exchangeability |
Randomly |
0.2dB |
|
Durability |
>500 times |
0.2dB |
|
Locking |
68.6N, 10min |
0.1dB |
|
Note: Please see Telcordia GR-326-CORE or IEC standard |

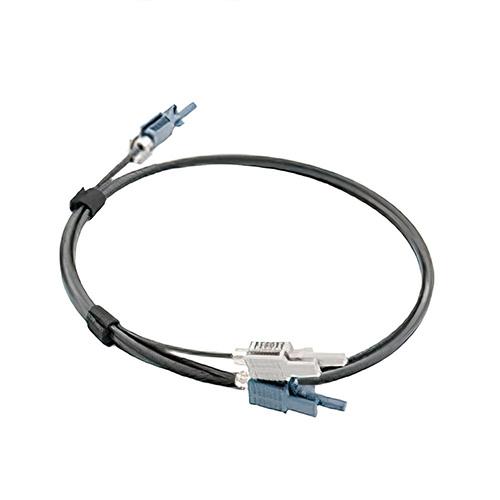

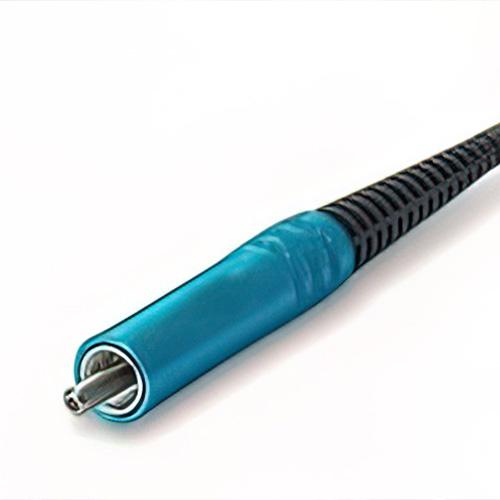

Product Pictures
Feature:
●High reliability and stability
●End face geometry compliance with GR-326Core
●Low insertion loss ,High return loss
●Varied construction to select
●High grade fiber end face polishing standard
|
PLASTIC OPTIC FIBER (POF) PATCH CORD PERFORMANCE |
|
Project |
Insertion Loss |
Fiber Material |
Fiber Diameter |
Wavelength |
Numerical Aperture |
Temperature |
|
Standard Requirement |
≦0.50dB |
PMMA |
Ф1.0/2.2mm |
650nm |
0.47 |
-40～70℃ |
|
ENVIRONMENTAL AND MECHANICAL PERFORMANCE MT-RJ |
|
Test Item |
Performance Condition |
Insertion Loss |
|
High Temperature |
+60℃, 96h |
0.2dB |
|
Low Temperature |
-10℃, 96h |
0.2dB |
|
Temperature Cycle |
-10℃～+60℃, 12 cycles, 96h |
0.2dB |
|
Humidity Aging |
40℃, 95%R.H, 96h |
0.2dB |
|
Vibration |
10 Hz～55Hz, 1.5mm(p-p) |
0.2dB |
|
Flex |
0.6～0.9kgf, -90°～+90°100 cycles |
0.2dB |
|
Twist |
1.5～2.5kgf, 10 times/min,±180°, 200times |
0.2dB |
|
Tension |
70～90N, 10min |
0.2dB |
|
Impact |
1.5m, 8 times |
0.2dB |
|
repeatability |
10 times |
0.2dB |
|
Durability |
>500 times |
0.2dB |
|
Note: Please see Telcordia GR-326-CORE or IEC standard |
Application Field:
●Telecommunication Networks
●Active or passive device termination
●Gigabit Ethernet
●CATV
●Industrial, medical & military
