Quartz Fiber Opitc Light Guide
Quartz Fiber Optic Bundle
Can provide the glass fiber, plastic optical fiber, quartz fiber of various materials of the optical interface and optical fiber length and diameter, size beam, suitable for dot and coaxial illumination, high temperature test, etc.
  • Item NO.:Customized

  • Product Origin:Jiangsu, China

  • Main Material:Silica fiber

  • Application:Medical Industry, Industrial, etc

  • Share To :
New Products
Product Details

Product Details

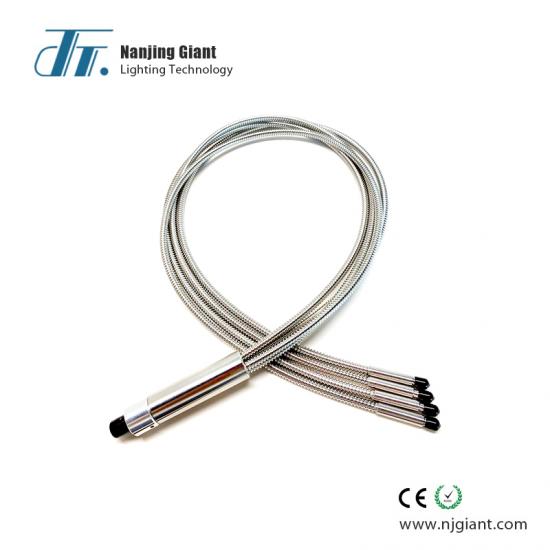

Quartz Fiber Optic Bundle
Numerical Aperture
UVHCS:0.22±0.02 IRHCS:0.27±0.02
UVHCS:190nm~1200nm IRHCS:350nm~2500nm
Transmission Rate
Working Temperature
Long-term radius of curvature
300D (D is the outer diameter of clad)
Short-term radius of curvature
100D (D is the outer diameter of clad)

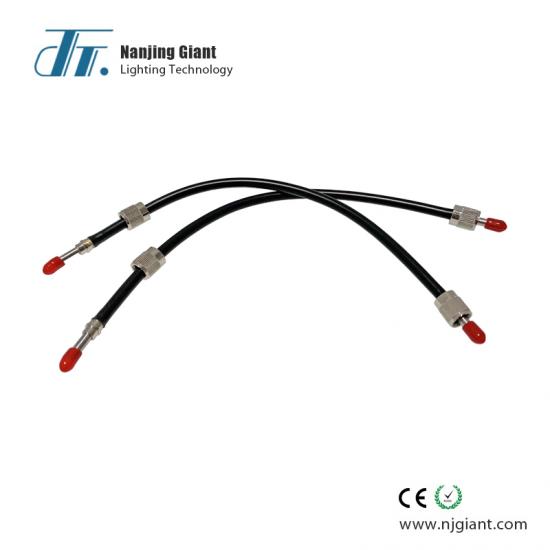

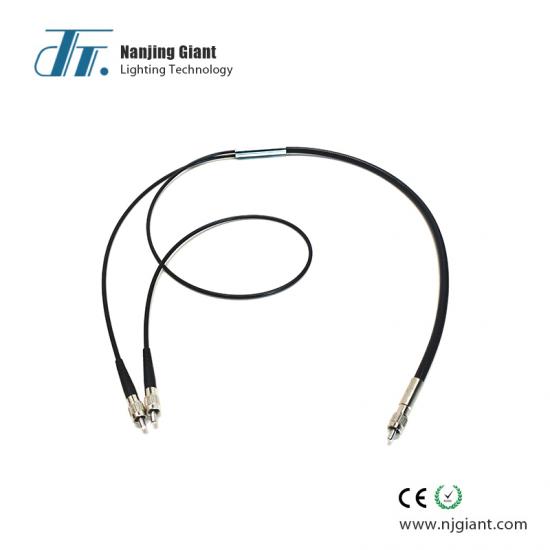

All standard connectors (SMA 905, SMA 906, ST, FC) are available, or custom ferrules,machined in-house to your specifications, and to determine the best fiber for your application.


Precision SMA905 fiber optic connector or with an air gap protection improved metal SMA-905 connector,end precision grinding large core diameter fiber optic energy, to meet the general semiconductor laser / modules and output energy of the laser transmission in a low-power solid-state lasers;connection head of internal processes can be used without glue ring protection technology, further enhance the cooling effect and increased energy fiber life, meet laser welding,cutting and other high-power transmission needs.

Please contact customer service for  different specifications of optical fiber.

It would be helpful to have the following information ready for discussion:

  • Variety of standard interface.
  • Variety of specifications, sizes.

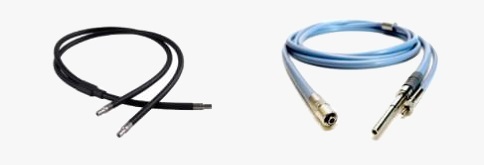

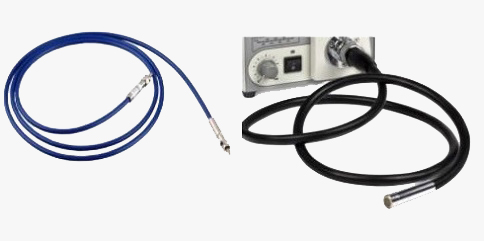

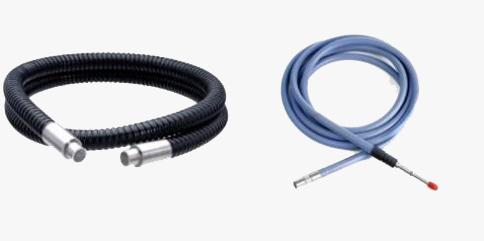

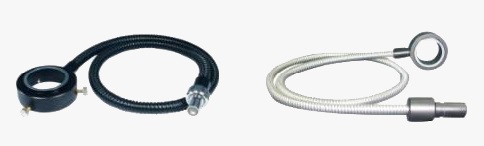

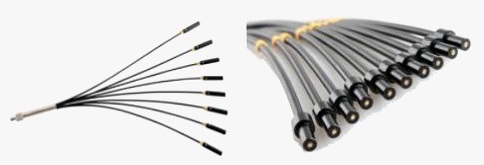

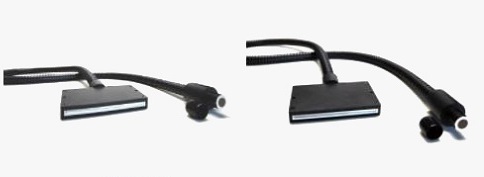

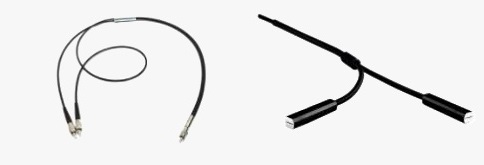

Product Pictures

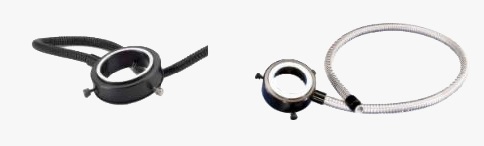

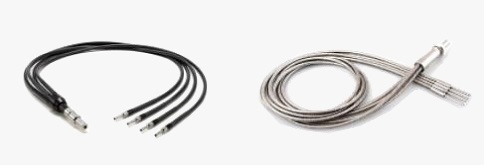

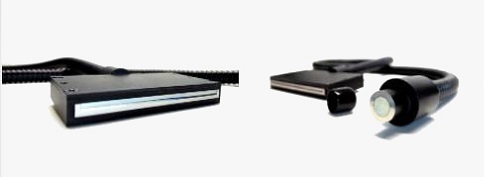

Product Features

Related Products

Our Factory

Nanjing Giant Technology Co., Ltd. professionally makes and markets plastic optical fibers, glass optical fibers, optical fiber lamps, and various green lights & lamps, specializing in universal non-communication optical fibers. Our running mission: technology based and market oriented. Our quality products have been exported to Europe, the USA, Africa and the Middle East.


Q: What is the application?
A: Laser transmission, spectrum detection, lighting, sensors, medical sensing, medical diagnosis and other fields.

Q: Is there certification?
A: ISO certification and RoHS testing.

Q: How long is the warranty?
A: 18 months.

Q: How to install?
A: Contact customer service to ask for installation drawings.

Q: Can it be customized?
A: Yes, contact customer service for customization.

Q: Are there samples?
A: Contact customer service to put forward your request.

Q: How long is the delivery period and how long will it take to receive it?
A: The specific decision is based on the customized product, which can generally be completed within one month.

Q: How about after-sales?
A: If there is a problem, we will provide replacement parts.
