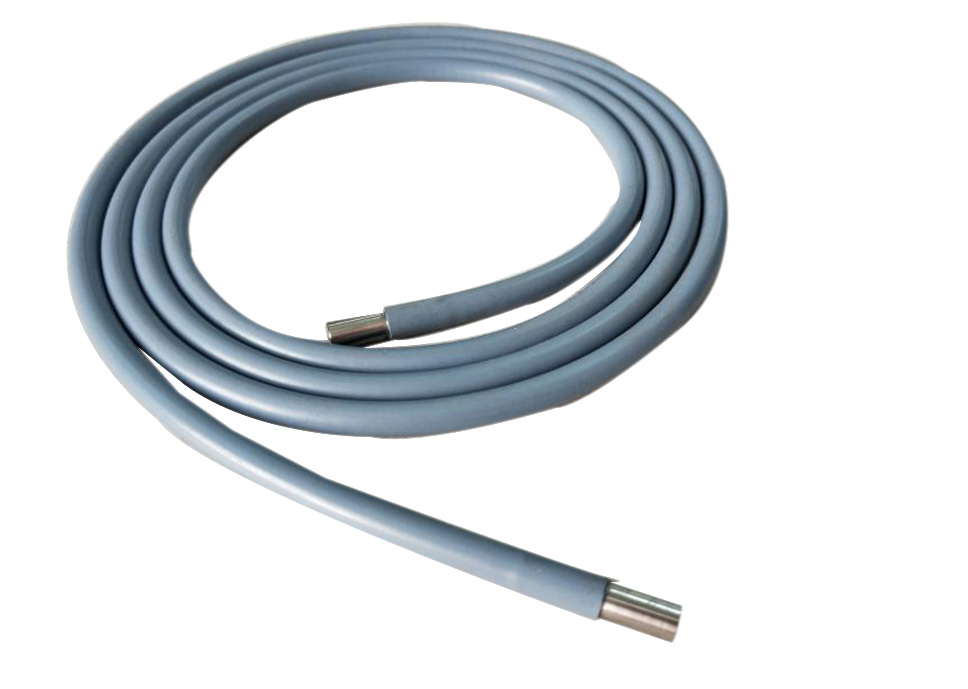

Glass Fiber Optic Light Guide
Imaging Transmits Fiber Bundle
The image transmission beam is a flexible passive image transmission device. Its structure is to integrate many optical fiber monofilaments of a certain length into a bundle. The monofilaments at both ends are closely arranged in a one-to-one correspondence. After curing and grinding, they become the image transmission beam. The optical fiber image transmission bundle can transmit images in a soft and curved state, realizing image transmission in dangerous and environments where hu
  • Product Origin:Jiangsu, China

  • Main Material:Glass,Quartz

  • Product Size:custom

  • Application:Thermal imaging,IR optical imaging,Laser delivery,Chemical sensing,Photon detection,IR early warning,Industrial and Medical image transmission, etc.

  • Share To :
Categories
New Products
Product Details
Product Details

It would be helpful to have the following information ready for discussion:

  • Variety of standard interface.
  • Variety of specifications, sizes.

Note:  Customized to customer requirements glass fiber image transmission bundle.

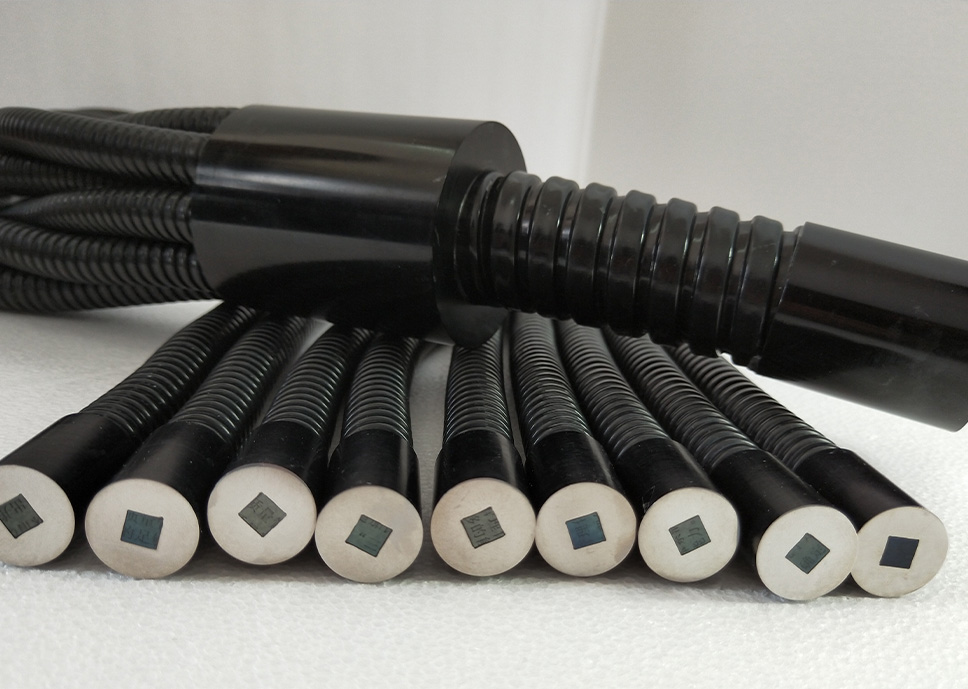

Multi-component glass optical fiber image transmission bundle:
The multi-channel image transmission beam is a fiber optic image transmission device with a complex optical path structure.

It can converge multiple images on one end surface and output them. Its structure can be four-in-one, six-in-one, nine-in-one and other structures.

Typical Bundle Specifications

Image Format(mm)
φ0.6-φ2.0,3×3-25×25
Diameter(μm)
8-15
Element(NA)
0.6
Operating Temperature(℃)
-40/80
Bending Radius(mm)
≤100
Length(mm)
150-5000

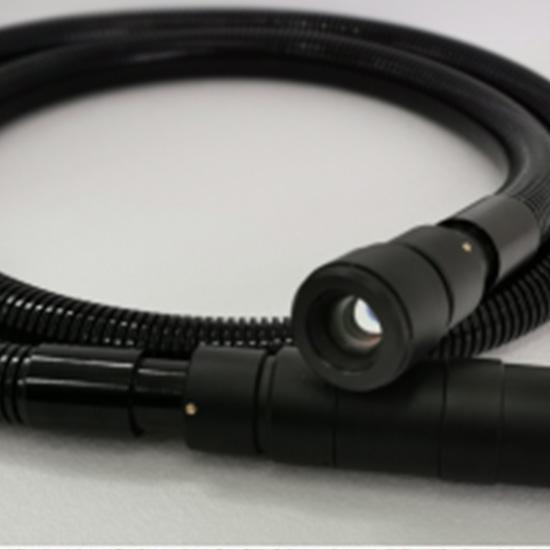

Product Pictures

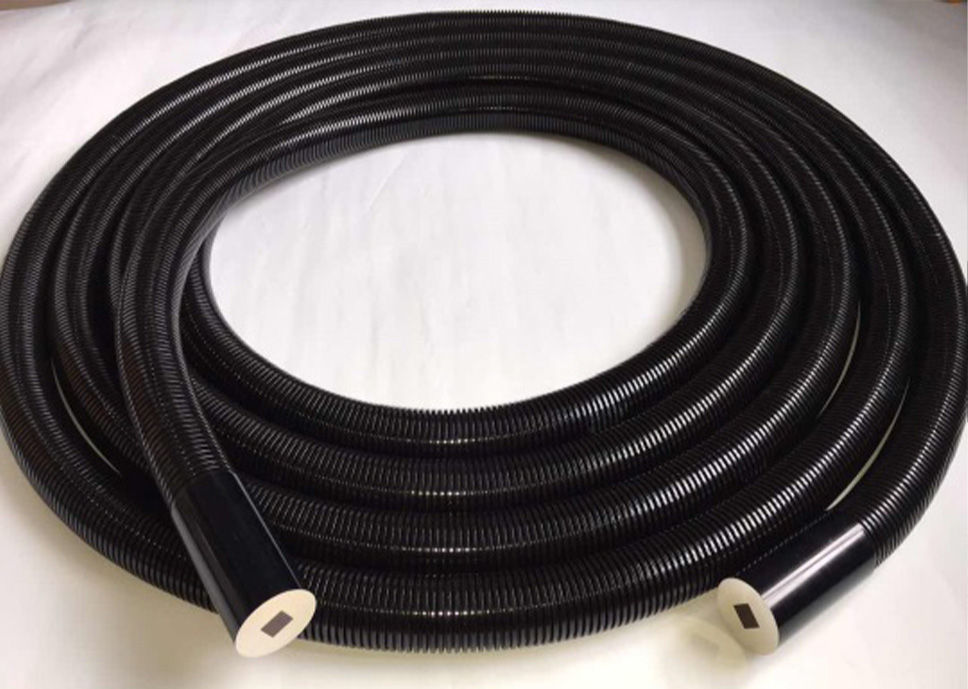

Quartz fiber image transmission bundle:

Quartz image beam is a flexible passive,image transmission device, which can be used in nuclear radiation, neutron radiation, electromagnetic radiation and other harsh environments.


Application:High speed photography,Nuclear radiation,Nuclear industry,Neutron radiation environment,etc.

Typical Bundle Specifications

Gamma resistant doseGray
105-6
Image Formatmm×mm
Image Formatmm×mm
Diameterμm
27.5
Length (mm)
1000-15000
Element (NA)
0.22
Bending Radius (mm)
≤100

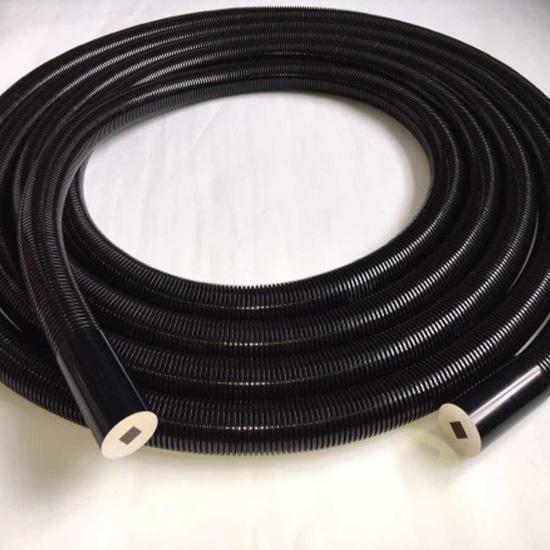

Product Pictures

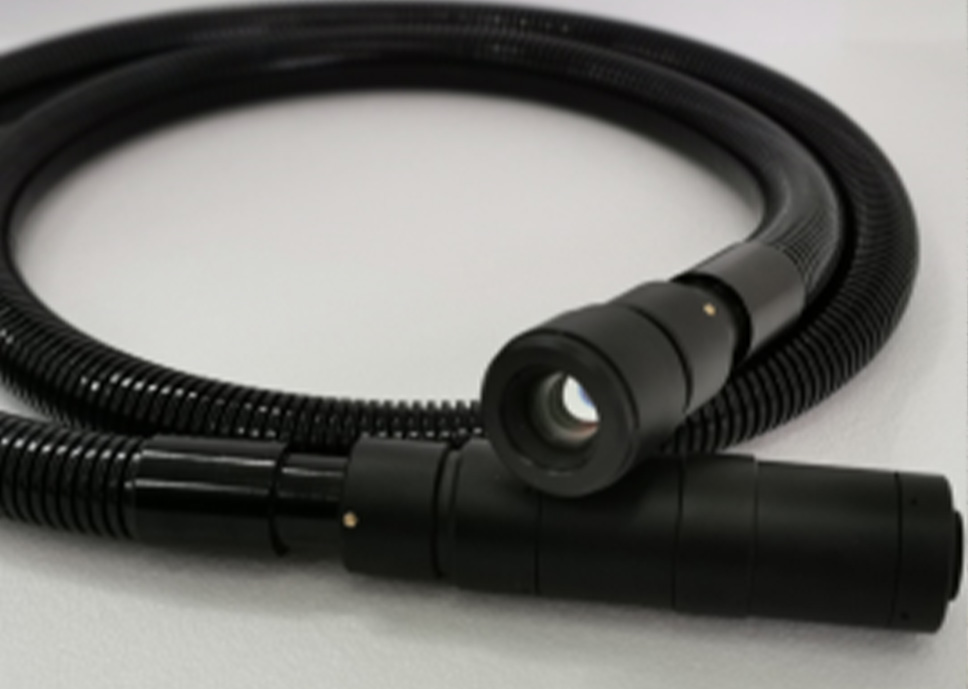

Low-loss Chalcogenide Image Transmission Bundle:

The chalcogenide infrared optical fiber image transmission bundle transmits the infrared optical image directly from one end to the other through the optical fiber, and can be used with the back-end infrared thermal imaging detector.


Application:Detection of heat distribution of objects in strong magnetic fields, hazardous environments, narrow spaces or small holes

  • Thermal imaging
  • IR optical imaging
  •  Laser delivery
  • Chemical sensing
  • Photon detection
  • IR early warning
                                                                                                                      Typical Bundle Specifications

Model
Transmission(μm)
Optical Loss(dB/m)
Element(NA)
Diameter(μm)


Highest Working Temperature(oC)



IRF-S Series
1.0~6.0μm
0. 2@3.8μm
0.10~0.30±0.01
30~200μm
150
IRF-TE Series
2.0~12.0μm
1.0@7.0μm
0.10~0.30±0.01
30~200μm
200
Product Pictures

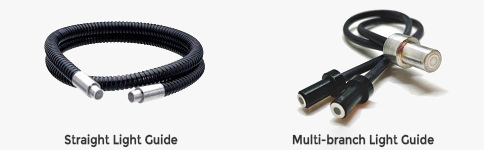

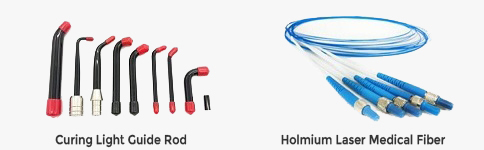

Related Products

Our Factory

Nanjing Giant Technology Co., Ltd. professionally makes and markets plastic optical fibers, glass optical fibers, optical fiber lamps, and various green lights & lamps, specializing in universal non-communication optical fibers. Our running mission: technology based and market oriented. Our quality products have been exported to Europe, the USA, Africa and the Middle East.

FAQ
Q: What is the application?
A: Laser transmission, spectrum detection, lighting, sensors, medical sensing, medical diagnosis and other fields.
Q: Is there certification?
A: ISO certification and RoHS testing.
Q: How long is the warranty?
A: 18 months.
Q: How to install?
A: Contact customer service to ask for installation drawings.
Q: Can it be customized?
A: Yes, contact customer service for customization.
Q: Are there samples?
A: Contact customer service to put forward your request.
Q: How long is the delivery period and how long will it take to receive it?
A: The specific decision is based on the customized product, which can generally be completed within one month.
Q: How about after-sales?
A: If there is a problem, we will provide replacement parts.
